| SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | MasterBox Series |
| Model | MasterBox TD500 V2 (TD500V2-KGNN-S00) |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x Front-Panel USB 10Gb/s Type-C Port |
| 2x Front-Panel USB 5Gb/s Type-A Ports | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports SSI CEB, E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards |
| E-ATX and SSI-CEB support with clearance of 304.8 x 271.7mm (H x W) | |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 3x 2.5″ HDD/SSD Drive Bays |
| 2x 3.5″ Drive Bays | |
| PSU Support | ATX |
| Dimensions | 499 × 210 × 500mm (D x W x H) |
| Weight | 7.7kg |
| Pre-Installed Fans | |
| Front | 3x Cooler Master CF120 120mm ARGB Fans |
| Top | N/A |
| Rear | N/A |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 3x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan |
| Radiator Support | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm Radiator |
| Top | 120mm, 140mm, 240mm, 280mm, 360mm Radiator (55mm thickness clearance) |
| Rear | 120mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 165mm |
| GPU Length Limitation | 410mm |
| Cable Management | Yes, with rubber grommets |
| PSU Length Limit | Up to 200mm (up to 170mm recommended for cabling) |
| General | |
| Dust Filters | Yes, Front, Top, Bottom PSU dust filters |
| Chassis Lighting | 4-Way ARGB & PWM Fan Hub |
| RGB Fans support 5V ARGB headers | |
| Warranty Information | |
| Warranty | 2 Year Warranty |

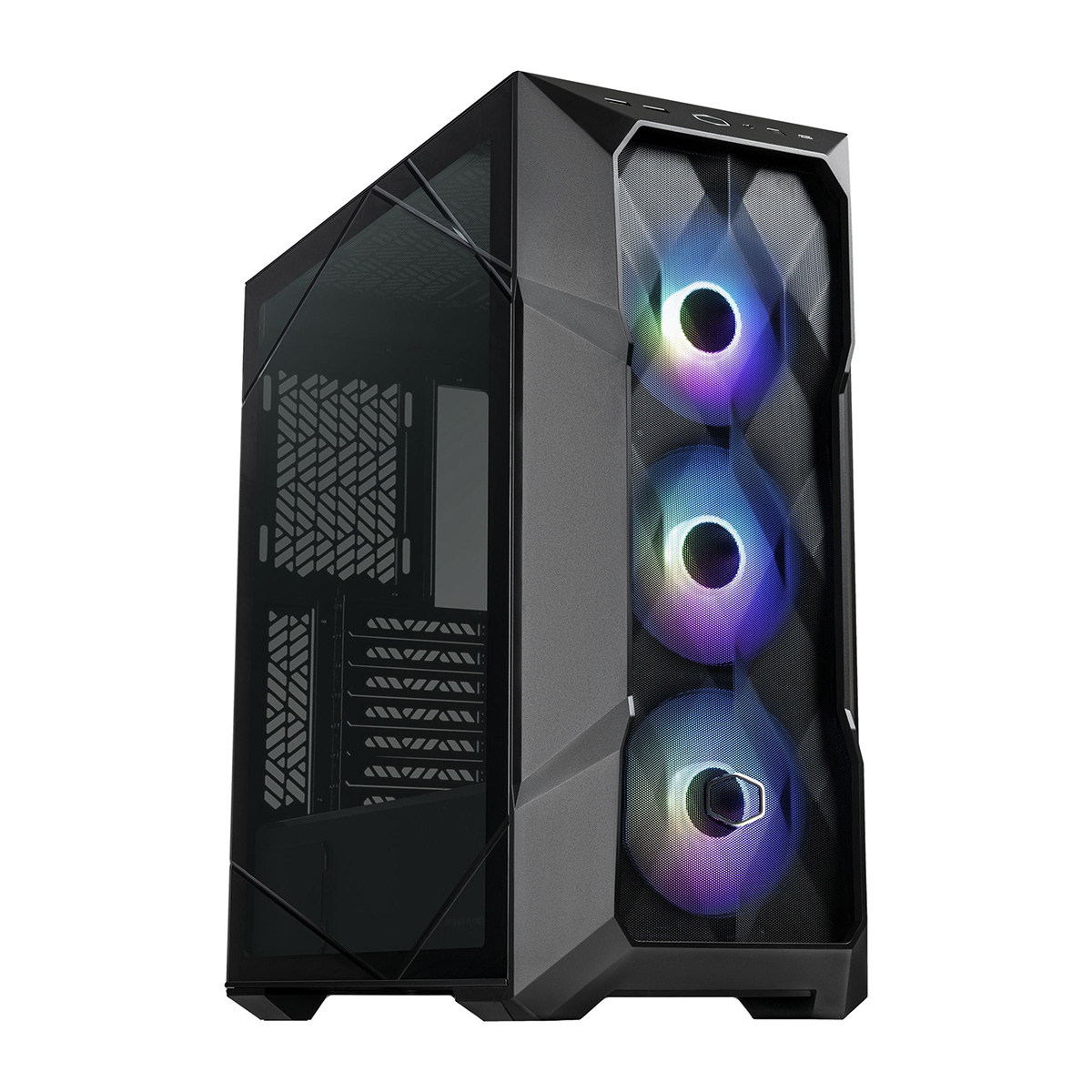

Cooler Master MasterBox TD500 V2 Clear Tempered Glass ARGB Black ATX Mid-Tower Chassis
R1,748.00
- Clear Tempered Glass Mid-Tower Chassis
- Supports SSI CEB, E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
- Front, Top, & Bottom-Mount Dust Filters
- Quick-Release Front Panel Design
- Removable PSU Shroud Cover
- Removable Top Panel & Fan Mount
- Integrated ARGB & PWM Fan Hub
- Tool-Free Crystalline Tempered Glass Panel
- 1x Front-Panel USB 10Gb/s Type-C Ports
- 2x Front-Panel USB 5Gb/s Type-A Ports
- 1x Front-Panel 3.5mm Combination Audio Jack
- 3x 2.5″ HDD/SSD Drive Bays
- 2x 3.5″ HDD Drive Bays
- 7x Horizontal PCI Expansion Slots
- Supports Up to 7x 120mm Fans
- 3x SickleFlow CF120 120mm ARGB Fans Pre-Installed (Front Intake)
- Radiator Support Up to 360mm
- CPU Cooler Clearance: 165mm
- GPU Cooler Clearance: 410mm
- PSU Length Clearance: 200mm
- Colour: Black
- RGB Fans Support 5V ARGB Headers
- 2 Year Warranty
